Produktdetaljer
- Valvetrain
- Selger S&S CYCLE
- 09250836
- Strekkode 09250836 / 330-0328
Bruk denne teksten til å oppmuntre til kommunikasjon eller fremme deling på sosiale nettverk.
- High lift camshaft for modified engines with 106" or greater displacement and compression ratios between 10.0:1 to 11.0:1
- Works with stock, unported heads, but S&S CNC ported heads are recommended
- Best power from 3000-600 rpm
- This is not a bolt in camshaft kit

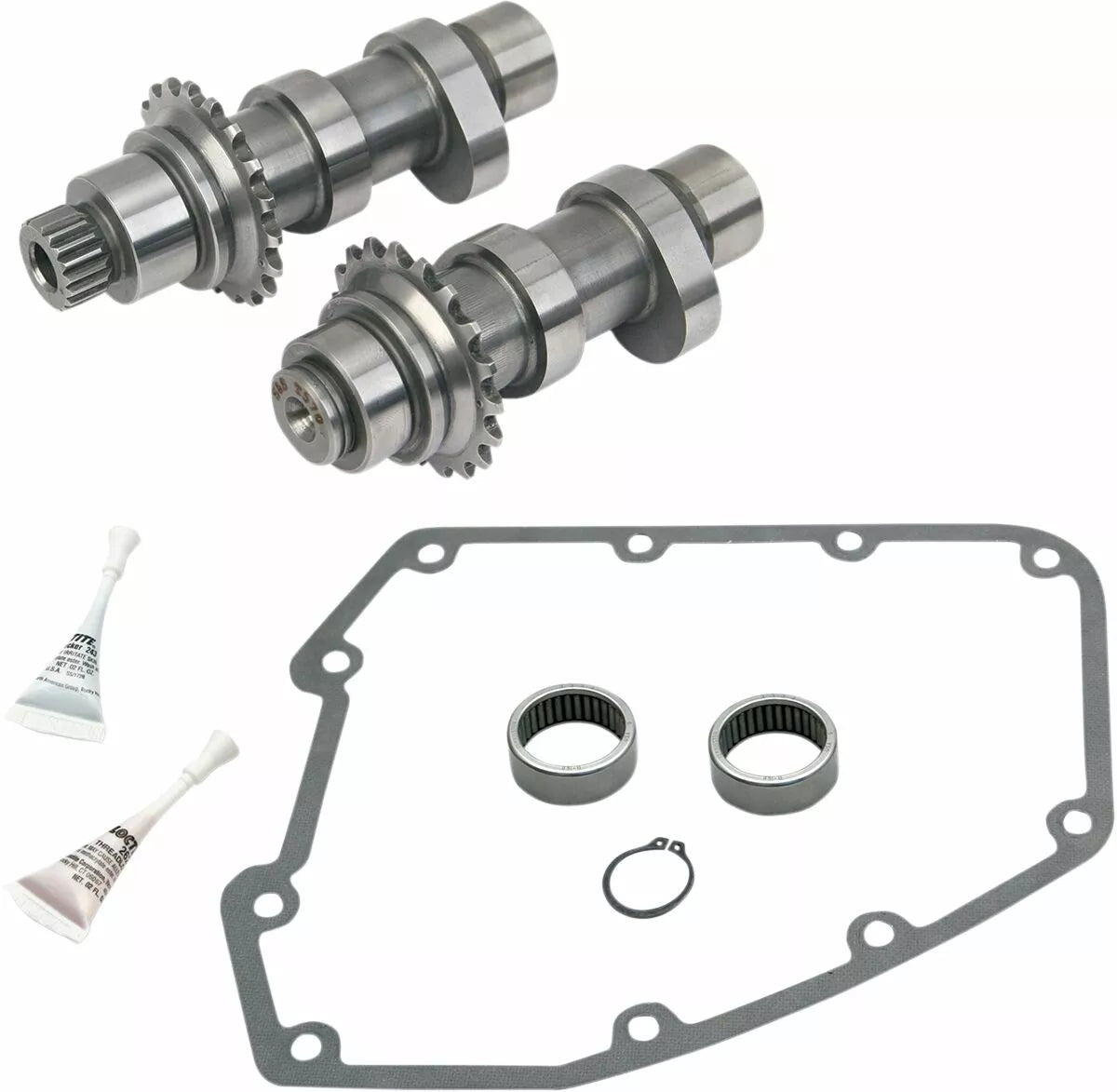

- Kit includes camshafts, bearings, gearcover gasket, retaining ring, o-ring, thread lock and instructions
- Made in the USA
- Installer must check coil bind, valve to valve clearance and valve to piston clearance
- Cams for '06 Dyna and '07-'17 Twin Cam are for use with models with hydraulic tensioner chain drive system.
Brand
S&S CYCLE
Vendor Part Number
330-0328
Application
Exhaust, Intake
Color/Finish
Raw
Exhaust Close
37,5°
Exhaust Duration
276°
Exhaust Lift
0,635"
Exhaust Lift at TDC
0,284"
Exhaust Lobe Centerline
100,5°
Exhaust Open
58,5°
Grind
635HO
Intake Close
43,5°
Intake Duration
243°
Intake Lift
0,635"
Intake Lobe Centerline
102°
Intake Open
19,5°
Product Name
Camshaft Kit
Type
Chain
Units
Kit
