Produktdetaljer
- Valvetrain
- Selger S&S CYCLE
- 09251342
- Strekkode 09251342 / 330-0732
Bruk denne teksten til å oppmuntre til kommunikasjon eller fremme deling på sosiale nettverk.
- Designed specifically for use with monster bores and ported heads (not recommended for stock bore engines)
- Improves cam timing accuracy and eliminates the stock cam chain
- All-out horsepower cam for 124” and larger engines
- Touring models require heavy duty valve spring kit
- Requires Quikee adjustable pushrods with cover keepers

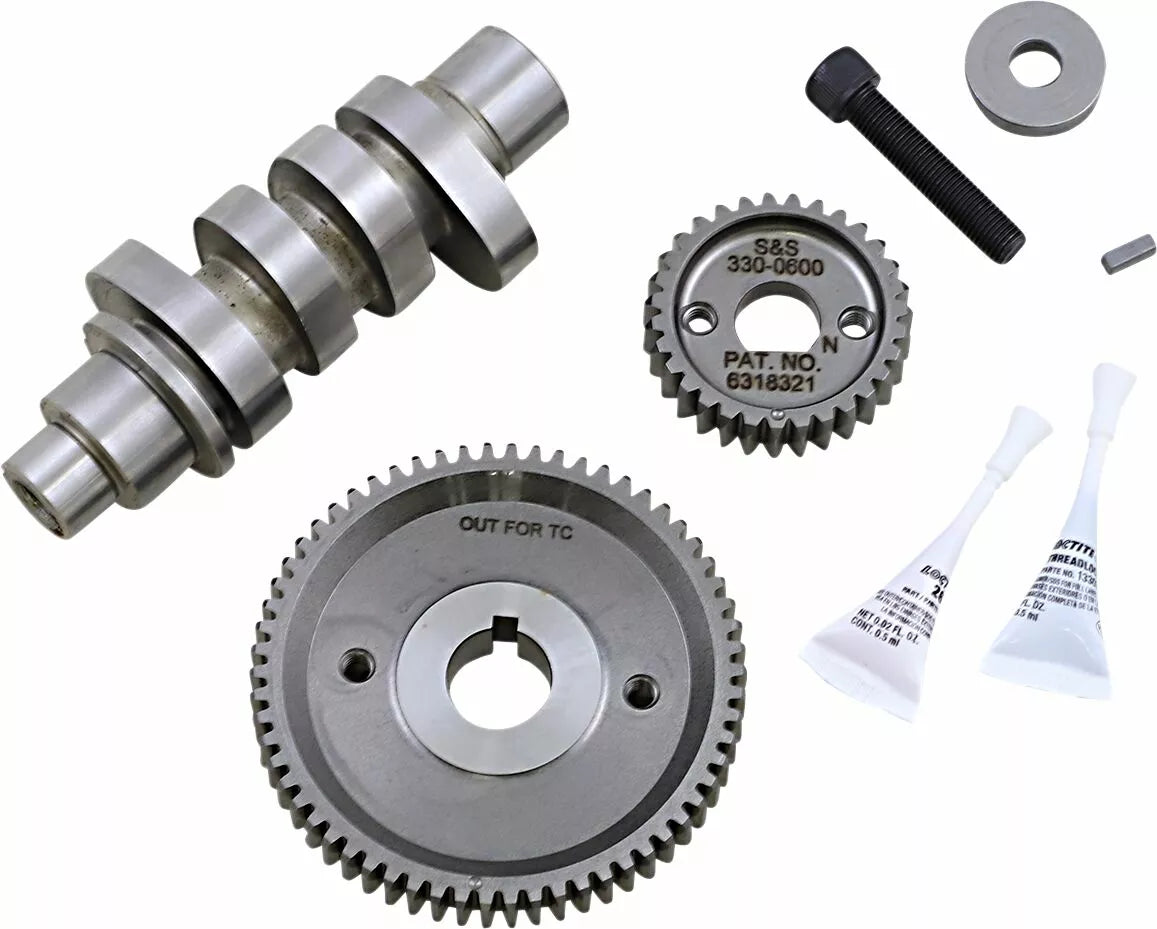

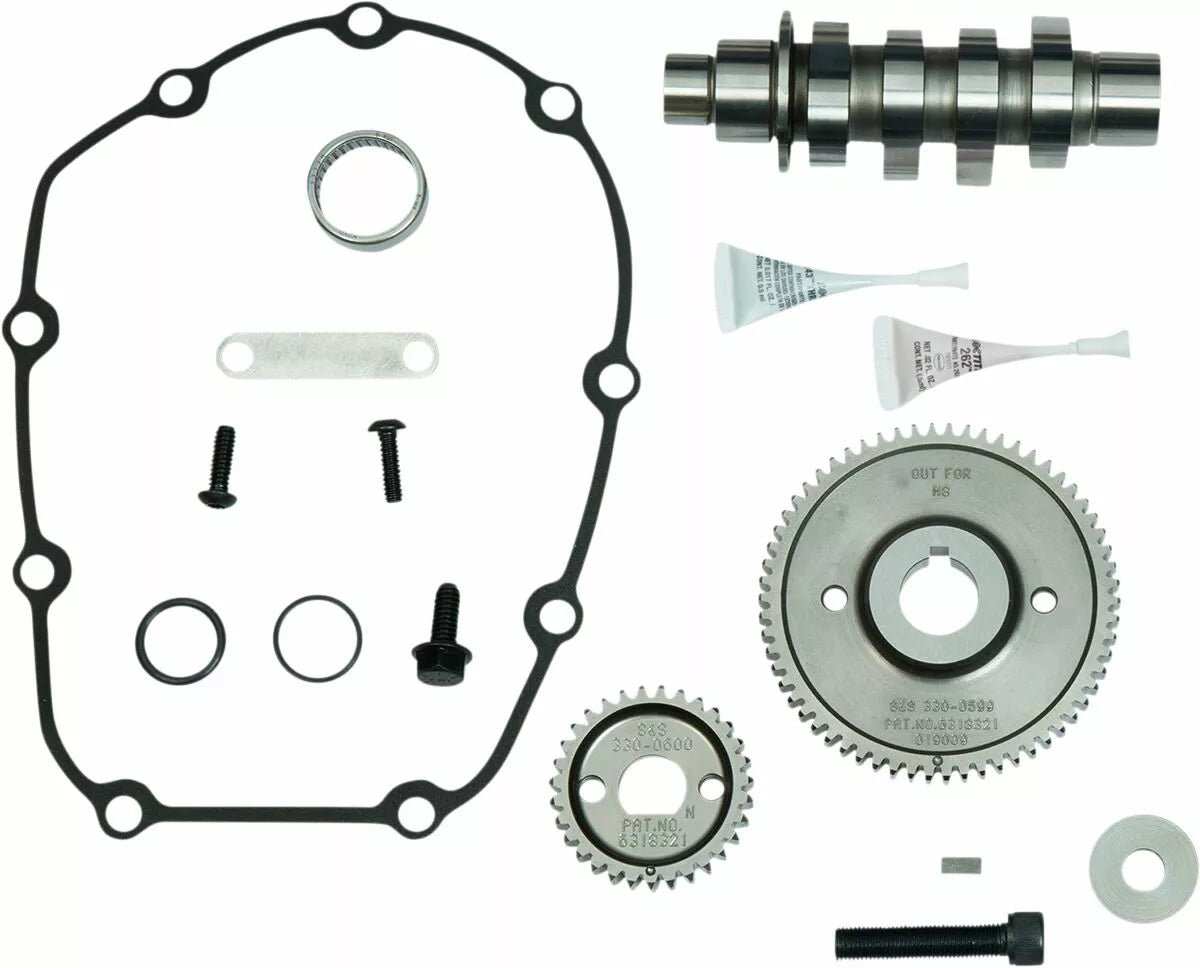

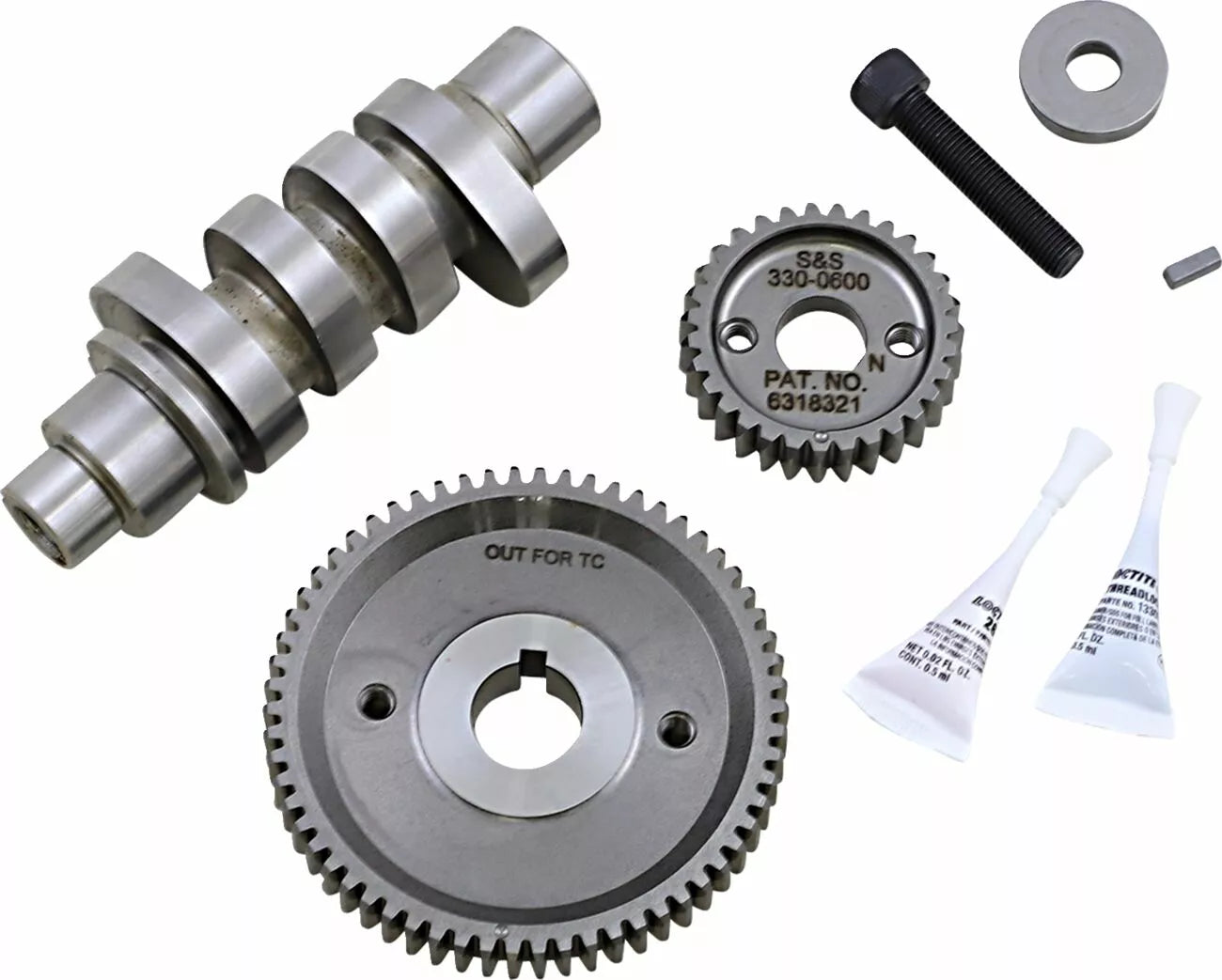

- Kit includes outer drive gears, bearings, o-rings, and hardware
- Tappets should be replaced every time that the cam is replaced, S&S suggest Precision Tappet set without HL2T Kit and Tappet Cuffs for M8 models.
- Made in the USA
Brand
S&S CYCLE
Vendor Part Number
330-0732
Application
Exhaust, Intake
Color/Finish
Raw
Exhaust Close
21,2° Front, 15,7° Rear
Exhaust Duration
266,1° Front, 258,4° Rear
Exhaust Lift
0,59" Front, 0,59" Rear
Exhaust Lift at TDC
0,186" Front, 0,158" Rear
Exhaust Lobe Centerline
111,7° Front, 113,5° Rear
Exhaust Open
64,8° Front, 62,7° Rear
Grind
590 Series
Intake Close
43,7° Front, 53,6° Rear
Intake Duration
239,4° Front, 253,9° Rear
Intake Lift
0,59" Front, 0,59" Rear
Intake Lift at TDC
0,165" Front, 0,186" Rear
Intake Lobe Centerline
104,1° Front, 106,7° Rear
Intake Open
15,6° Front, 20,2° Rear
Model
Big Bore Max HP
Product Name
Camshaft Kit
Type
Gear
Units
Kit
