Produktdetaljer
- Valvetrain
- Selger S&S CYCLE
- 09251015
- Strekkode 09251015 / 106-4033
Bruk denne teksten til å oppmuntre til kommunikasjon eller fremme deling på sosiale nettverk.
- Bolt-in cam providing power from 2200-5200 RPM in engines with displacement from 107-135 cubic inches
- Bumps horse power to over 100 and makes bigger power towards top end RPM range
- Compatible with compression ratios up to 11.0:1
- Original equipment specifications
- Does not require tuning

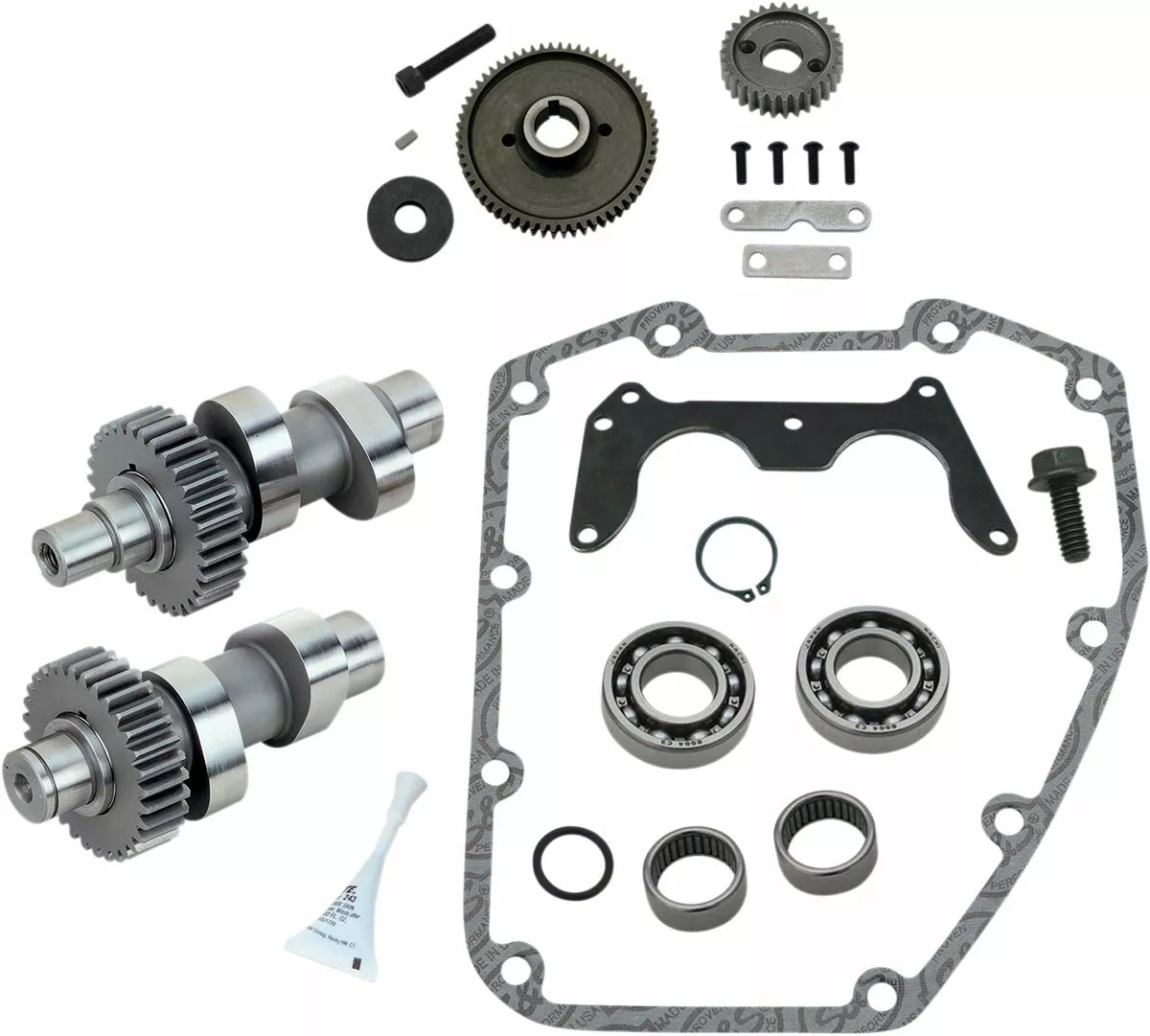

- Kit includes all required bearings, o-rings, and hardware
- Made in the USA
- Not for '06 Dyna.
Brand
S&S CYCLE
Vendor Part Number
106-4033
Application
Exhaust, Intake
Color/Finish
Chrome
Exhaust Close
28,5° Front, 20,2° Rear
Exhaust Duration
263,9° Front, 252,5° Rear
Exhaust Lift
0,475"
Exhaust Lift at TDC
0,208" Front, 0,170" Rear
Exhaust Lobe Centerline
103,5° Front, 106,0° Rear
Exhaust Open
55,5° Front, 52,2° Rear
Grind
475G
Intake Close
27,2° Front, 31,2° Rear
Intake Duration
213,5° Front, 213,5° Rear
Intake Lift
0,475"
Intake Lift at TDC
0,107" Front, 0,093" Rear
Intake Lobe Centerline
100,5° Front, 104,5° Rear
Intake Open
6,2° Front, 2,2° Rear
Product Name
Camchest Kit
Type
Gear
Units
Kit
