8mm Belt Drive with Quiet Clutch System
Vanlig pris
23.971.675,00 kr
Kunne ikke laste inn tilgjengelighet for henting
Produktdetaljer
- Transmission & Components
- Selger BELT DRIVES LTD.
- 11200253
- Strekkode 11200253 / EVBB-3T-5
Bruk denne teksten til å oppmuntre til kommunikasjon eller fremme deling på sosiale nettverk.

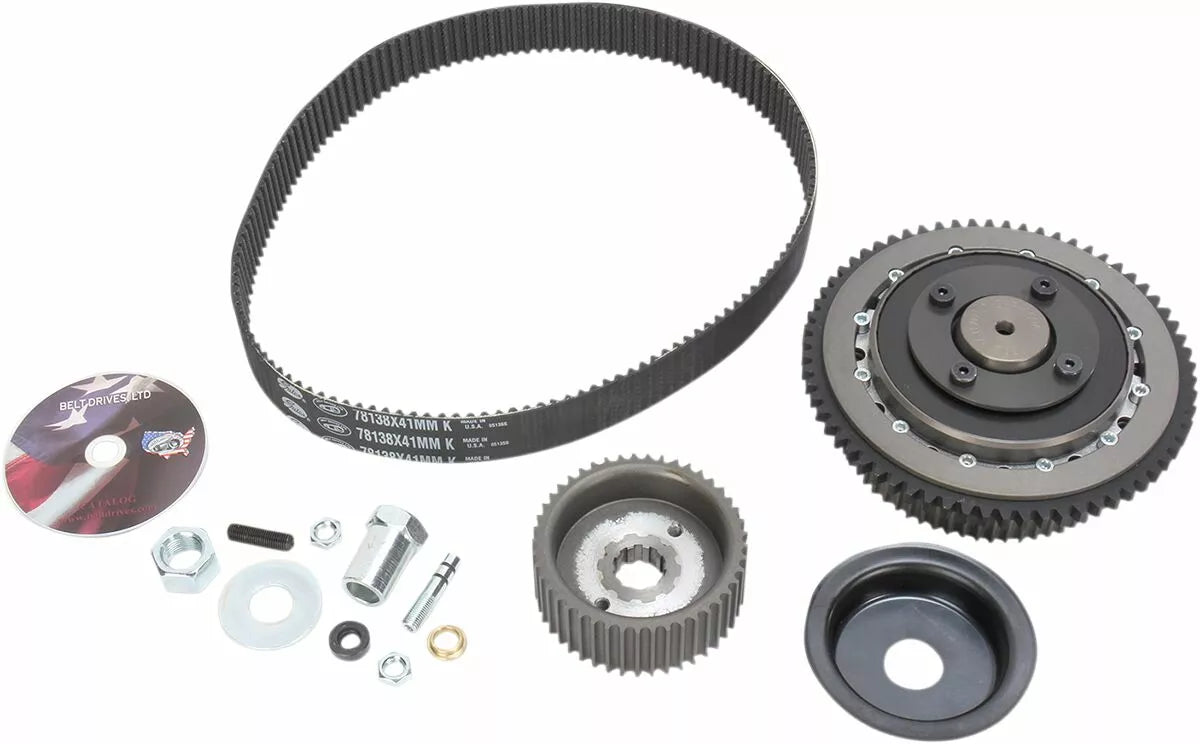

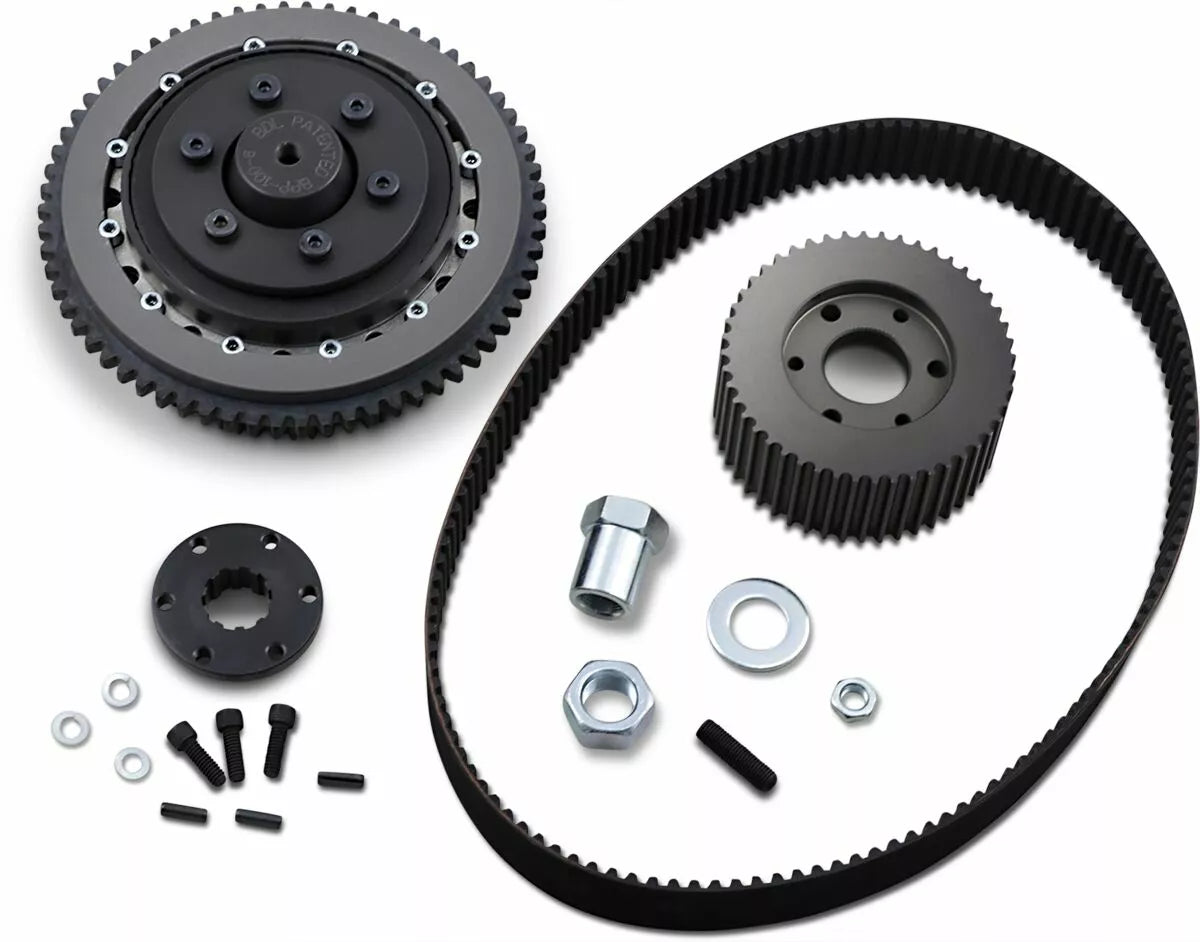

- 1-1/2" and 1-5/8" kits include front pulley, belt, clutch hub, clutch basket and aramid clutch set (consists of two half plates, four full plates and five steel drive plates)
- Direct bolt-in applications

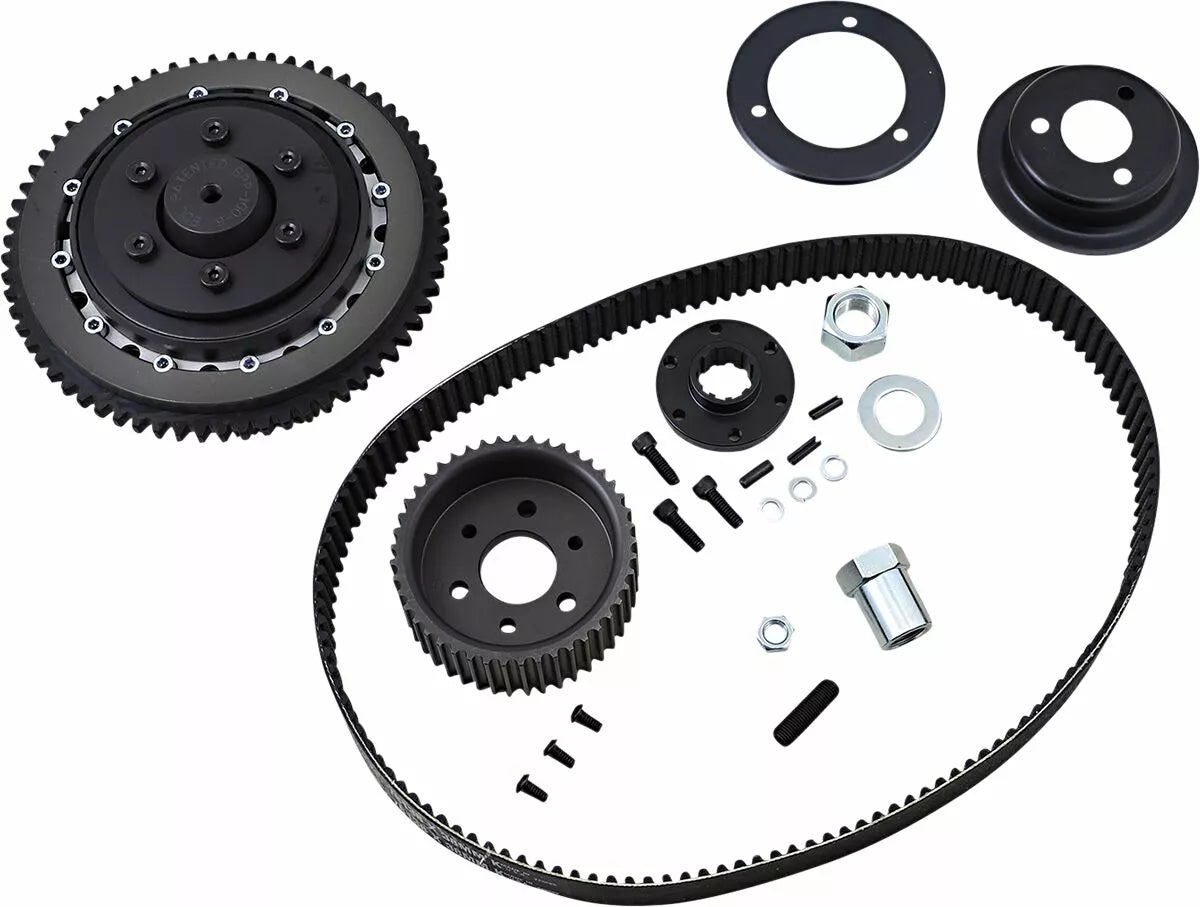

- 3" electric start kit includes front pulley, belt, clutch hub and clutch basket and aramid clutch set (consists of two half plates, four full plates and five steel drive plates), 6061 T-6 billet motor plate, outside guard and polished pulley cover
- All systems come with the Quiet Clutch system
- Precision-machined, polished aluminum pressure plate uses nine springs and shoulder bolts to ensure even spring pressure (included in kit)
- Rear pulley has a 40mm, double-row bearing with an inner stress-proof steel clutch hub to support the clutch
- Made in the U.S.A.
- 3" system is not designed for use with floorboards.
- Not for use with offset primaries.
Brand
BELT DRIVES LTD.
Vendor Part Number
EVBB-3T-5
Material
Steel, Kevlar, 6061 T-6 Billet Aluminum
Product Name
Belt Drive Kit
Units
Each
Width
41,3 mm (1-5/8")
