Product details
- Type Valvetrain
- Vendor S&S CYCLE
- SKU 09250348
- Barcode 09250348 / 106-4381
Use this text to encourage communication or promote sharing on social networks.
- Designed for 88" to 103" CID engines with compression ratios between 9:1 and 10:1

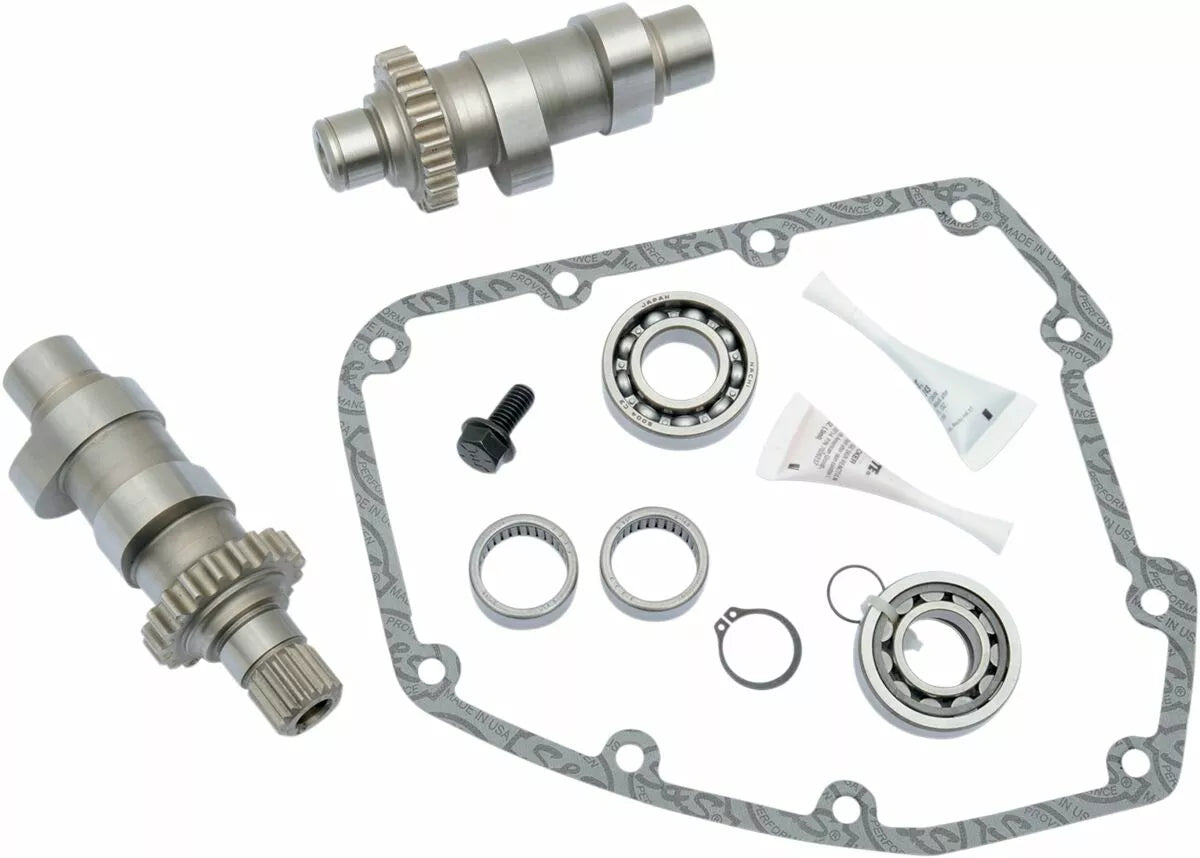

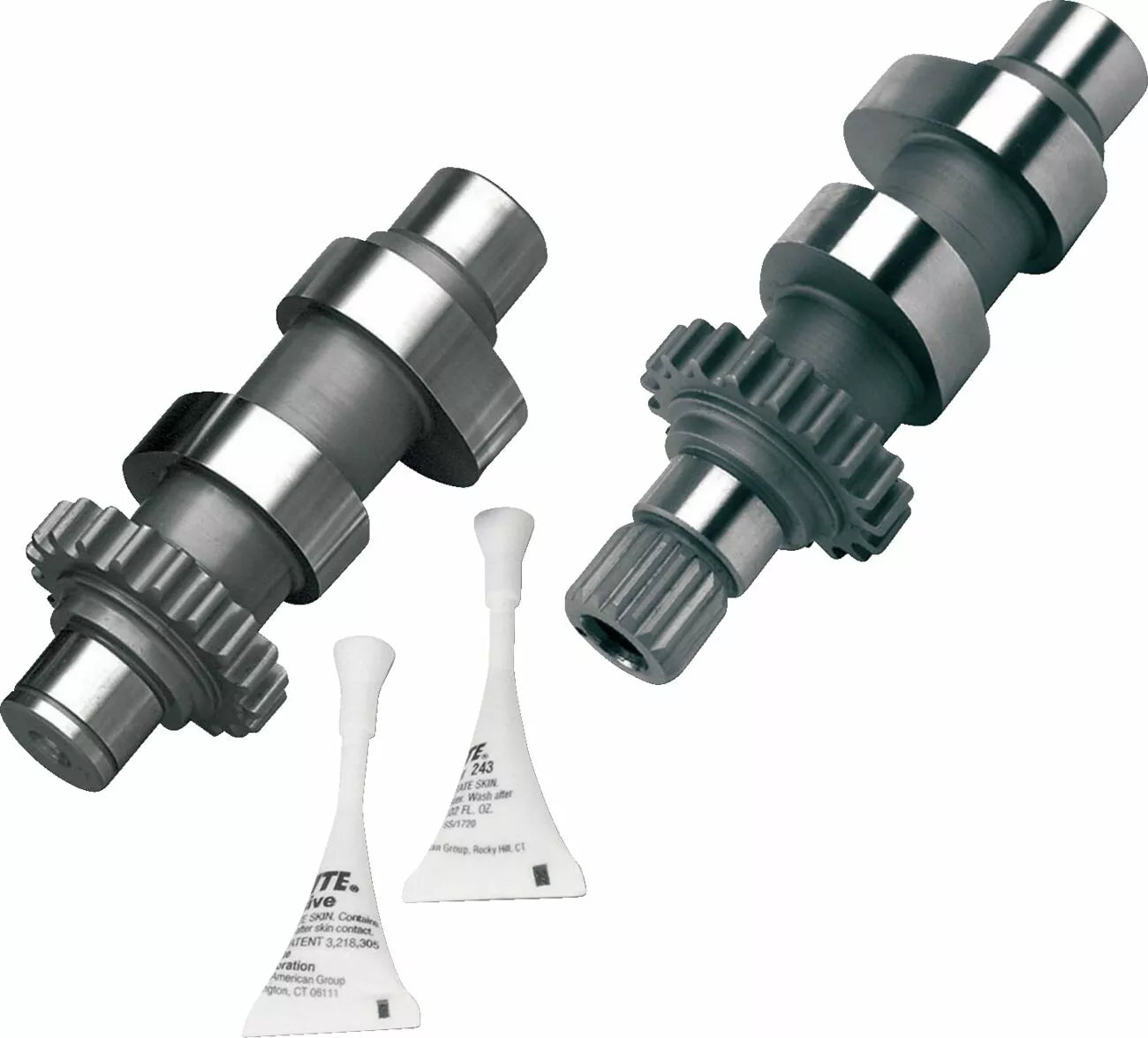

- Kit includes camshafts, gearcover gasket, bearings, retaining ring, o-ring, thread lock and instructions
- Strongest from 3200-3700 rpm
- Made in the USA
- Installer must check coil bind, valve to valve clearance and valve to piston clearance.
- Requires high lift valve springs.
- Camshafts for '06 Dyna and '07-'17 Twin Cam are for use with models with hydraulic tensioner chain drive system.
- Camshafts for '00-'06 Twin Cams are use with stock splined drive gears.
Brand
S&S CYCLE
Vendor Part Number
106-4381
Application
Exhaust, Intake
Exhaust Close
20°
Exhaust Duration
255°
Exhaust Lift
0,570"
Exhaust Lift at TDC
0,179"
Exhaust Lobe Centerline
107,5°
Exhaust Open
55°
Grind
570 Series
Intake Close
40°
Intake Duration
240°
Intake Lift
0,570"
Intake Lift at TDC
0,187"
Intake Lobe Centerline
100°
Intake Open
20°
Product Name
Camshaft Kit
Type
Chain
Units
Kit
